Air-cooled chillers

NOMINAL COOLING CAPACITY 1,7 - 4,4 KW

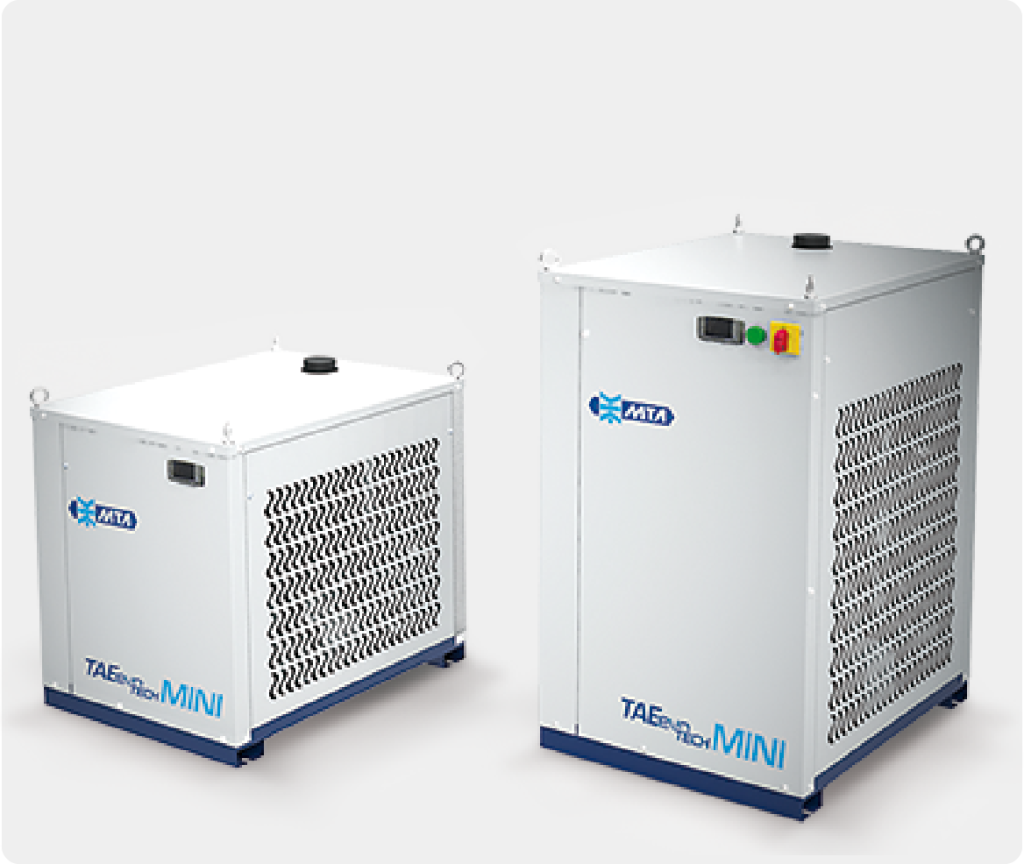

The chillers of the TAE N Mini series, developed from the TAEevo TECH Mini range, represent MTA’s ecological and natural turning point. They offer solutions designed to reduce environmental impact through the use of refrigerant R290 while upholding the core principles of industrial applications—reliability, certified performance, versatility, and overall system cost reduction. The compact design, efficient component layout, and extended operating limits ensure straightforward installation, simple maintenance, and reliable operation even in the most challenging conditions. Thanks to the non-ferrous hydraulic circuit, the TAE N Mini can handle process fluids that are typically aggressive toward carbon steel.

TAE N Mini, the best solution for the industrial processes of today and tomorrow.

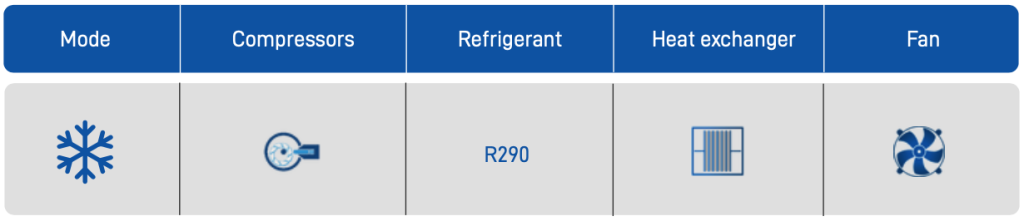

Technical features
Standard features
  • Refrigerant fluid R290 (GWP=3, ODP=0)
  • Hermetic rotary compressors
  • High efficiency finned coil evaporator installed inside the storage tank, with copper tubes and aluminium fins
  • Polyethylene coolant storage tank fitted with drain valve, filling and overflow connections and a visual level indicator
  • Air-cooled aluminium microchannel condenser with protection coating and a removable metal mesh filter
  • Peripheral non-ferrous P3 pump (3 barg nominal available head pressure)
  • Axial fan equipped with plastic material blades
  • Non ferrous atmospheric pressure hydraulic circuit with a 0-6 bar pressure gauge
  • Water by-pass for safe continuous operation
  • Hydraulic circuit compatible with glycol concentrations up to 30%
  • High pressure switch with automatic reset
  • Easy to use parametric microprocessor control
  • Lamination device: capillary tube
  • AC power plug for simple electrical connection
  • Power supply: 230V/1Ph/50Hz
  • Electrical protection grade IP33
Options
  • Peripheral non-ferrous P5 pump (5 barg nominal available head pressure)
  • Hydraulic sectioning system (M08-M10)
  • Industrial multipole connector (M08-M10)
  • Stainless steel frame
Kits
  • Hydraulic filter
  • Automatic hydraulic by-pass
  • Dynamic set-point
  • Antivibration mounts
  • Wheels kit
