Tae Evo Tech

Air-cooled chillers

NOMINAL COOLING CAPACITY 8 - 259 KW

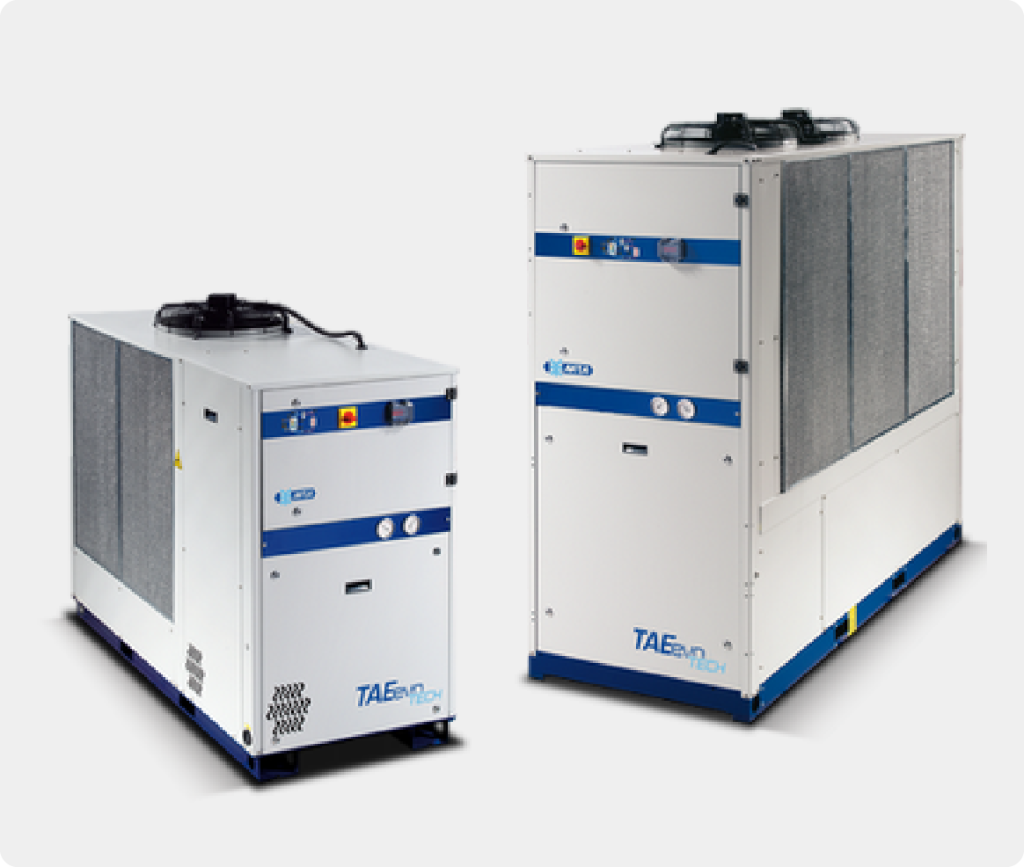

The TAEevo TECH chillers are compact units designed for industrial use, equipped with hermetic scroll compressors and featuring an innovative finned pack evaporator installed within the hydraulic storage tank.

The dual-frequency version builds upon the extensive technical features of the standard unit, ensuring a secure and repeatable production process while reducing costs and protecting the environment. With wide operating limits, these chillers can function in both pressurized hydraulic circuits and at atmospheric pressure. Additionally, thanks to the various versions and optional features available, the TAEevo TECH chillers stand out as the best in their category, offering exceptional application versatility and a high degree of reliability. TAEevo TECH is, therefore, the ideal solution for all process applications that demand high performance, continuous operation, and reduced management costs.

Technical features

Benefits

The refrigerant R410A (ODP=0) ensures high performance thanks its outstanding heat conductivity properties
Innovative evaporator with immersed finned coil, characterized by low pressure drops and reduced sensitivity to impurities
The oversized hydraulic tank is standard and is able to compensate for the imbalances caused by sudden changes in load demand from the user
Wide operating limits (Minimum Twout = -10°C standard)
Hydralic circuit adaptable for atmospheric and pressurized hydraulic circuits (up to 6 barg)
Compact structure
Suitable for outdoor installation
Standard air condenser filters
Safety hydraulic by-pass
Wide range of accessories and kits for customized solutions
Easy installation, use and maintenance
Designed to operate 24/7 under the most demanding industrial conditions
Master/slave modularity from 2 to 5 units

Technical features

Galvanized carbon steel sheet structure hot painted with polyester powders
Refrigerant: R410A
Parametric microprocessor controller
High performance hermetic scroll compressors
Immersed finned coil evaporator with copper pipes and aluminum fins inside inertial tank
Finned condenser coil with copper pipes and large aluminum fins protected by filters
Electronic expansion valve (from mod.031)
HP/LP refrigerant manometers (from mod.031)
Integrated hydraulic circuit configuration made up from: single or double circulation pumps with medium or high available head pressure, inertial tank, safety valve, air vent valve
Water flow pressure manometer
Phase monitor
Crankcase heater compressor
Axial fans with optimized profile
Conductive level sensor
Electric power supply 400/3/50
SEPR HT and SEPR MT Tier2 compliant

Versions

Pressurized Non Ferrous hydraulic circuit (mod.020-802)
Close control regulation of the outlet water temprature through hot gas by-pass valve (hysteresis ± 0,5°C) (mod.020-351)
Low ambient temperature version up to -20 °C mod. (031- 1002)
Dual frequency version: power supply 400V/3/50 Hz – 460V/3/60 Hz (mod.020-161)
UL508A – CSA 22.2-14 version: power supply 460V/3/60Hz.

Accessories

Evaporator anti-freeze protection
Single or double circulation pumps (mod.201-1002) with medium or high available head pressure
Open circuit circulation pump with medium available head pressure (mod.031-1002)
Without pump version
Centrifugal fans (mod.031-161)
High efficiency EC brushless axial fans with high head pressure (max 150 Pa) and inverter control (mod. 201-802)
Electronic fans speed regulation (mod.031-802)
EC brushless fans (mod.902-1002)
Condensing coils protection with protective paint
